Different operations are used to achieve specific features:Different operations are used to achieve specific features:Different operations are used to achieve specific features:
- CNC Milling: A rotating cutting tool removes material from a stationary workpiece. Ideal for creating slots, holes, pockets, and complex 3D contours.

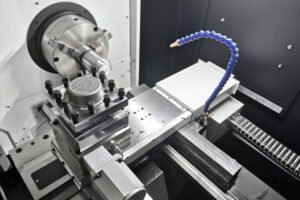

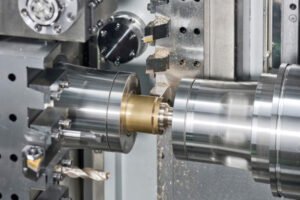

- CNC Turning: The workpiece rotates while a stationary cutting tool removes material. Primarily used for creating cylindrical or conical parts like shafts, bushings, and couplings.
- CNC Drilling & Tapping: Creates precise holes and threads (internal threads via tapping).
- Multi-Axis Machining: Advanced machines (4-axis, 5-axis) can rotate the workpiece and/or the cutting tool, allowing machining from multiple angles in a single setup for highly complex parts.
5. Critical Design Considerations for CNC Parts
To optimize manufacturability, cost, and performance, designers should follow Design for Manufacturing (DFM) principles:
- Internal Corners: Use fillets instead of sharp corners, as cutting tools are round.
- Wall Thickness: Maintain adequate, uniform wall thickness to prevent vibration, distortion, or breakage during machining.
- Hole Depth: Limit the depth of drilled holes to reduce tool breakage risk; a general rule is a maximum depth of 4x the hole diameter.
- Text and Lettering: Engraved text should use sans-serif fonts and be of a reasonable size for the tool to machine cleanly.
- Tolerances: Specify tolerances only where functionally necessary, as tighter tolerances increase cost and time.
6. Applications Across Industries
CNC machined parts are ubiquitous in high-tech and demanding sectors:
- Aerospace: Engine components, landing gear parts, brackets, and UAV components, often made from high-strength, heat-resistant alloys like titanium and Inconel.
- Medical: Surgical instruments, implants, MRI components, and dental guides, requiring biocompatible materials (e.g., stainless steel 316L, titanium) and flawless surface finishes.
- Automotive: Prototype parts, engine components, custom fittings, and components for performance vehicles.
- Electronics: Heat sinks, enclosures, connectors, and waveguide components that require precise dimensions and excellent thermal or electrical properties.
7. Conclusion
CNC machining remains a cornerstone of precision manufacturing, combining digital design fidelity with robust mechanical production. Its ability to produce durable, precise, and complex parts from a wide range of materials makes it an indispensable technology for prototyping, custom one-offs, and large-scale production. As CNC technology continues to evolve with advancements in automation, smart monitoring, and hybrid manufacturing, its role in shaping the future of industrial production will only become more profound.
